Sprinter Van Rear Door Platform

The Sprinter Rear Door Platform is designed to give your 2019+ Sprinter (VS30) or 2020+ Winnebago Revel additional gear carrying capacity at the rear of the van. The unique aluminum round frame and mounting plate combination makes it stronger and more versatile than other Sprinter rear gear carriers on the market.

The combination of patterned mounting slots, and ½” and ⅜” holes, delivers endless mounting capabilities, and you can configure the platform to carry almost anything. The mountable surface sits flush with the tubing so there’s plenty of room for loading up additional gear. The suggested weight limit is 200lbs.

Add bikes, cargo boxes, MaxTrax, Rotopax, Snowboards/Skis, and more. Check out our full line-up of accessories to attach to the platforms here. We designed the platform to be incredibly versatile and also easy to swap out accessories as needed.

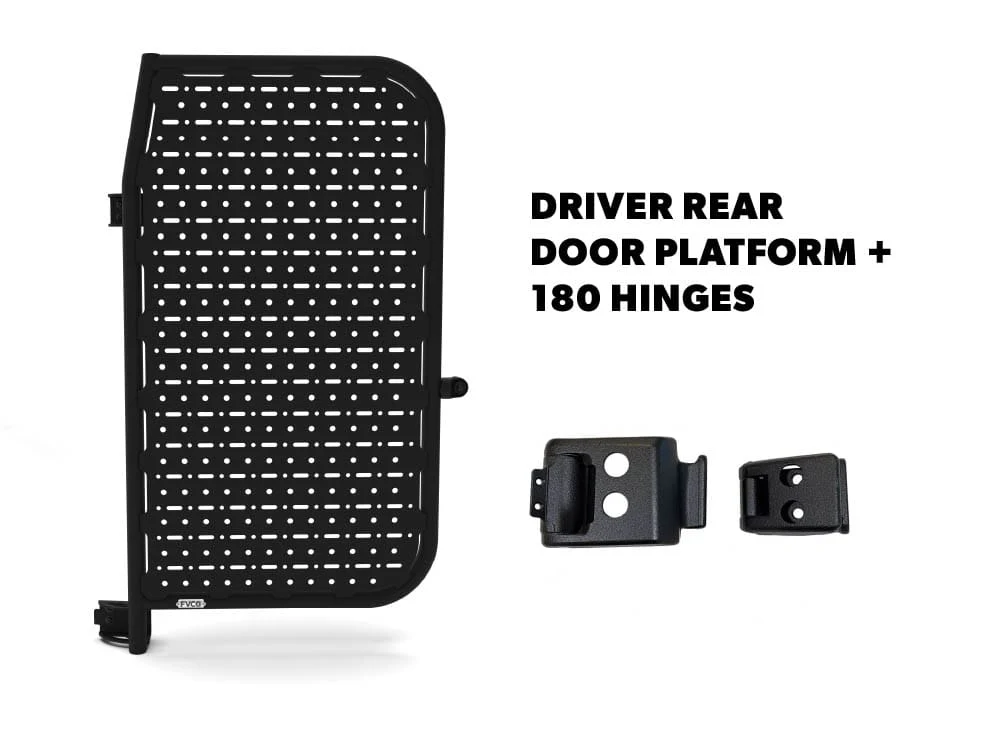

Installation is simple and straightforward and it only requires you to drill a single hole in the door. This third mounting point to the door features our dual-shock silicone damper that absorbs impact in both directions to protect your doors - a first in the van industry. After years of R&D we’ve found that drilling is required if you want a sturdy and reliable rear platform without compromises or unappealing design features. The rear door platform is designed to mount to 180 degree hinges.

DETAILS

• Robust 1.75” aluminum round frame, and 3/16” aluminum mounting plate
• Patterned 1/2" and 3/8" holes for mounting accessories
• Driver side mountable surface area: 50.75” tall by 28.25” wide
• Driver side overall dimensions: 52.5" tall by 30" wide
• Passenger side mountable surface area: 50.75" tall by 27.5" wide
• Passenger side overall dimensions: 52.5" tall by 29.25" wide
• Follows the body lines of your Sprinter van


COMPATIBILITY

• 2019+ Mercedes Benz Sprinter Vans (VS30)
• 2020+ Winnebago Revel
• 2022+ Jayco Terrain

NOTE: Does not work on vans with rear windshield wipers due to motor location.
